Cylinder Head, Removing And Installing, Vehicles With Starter Generator: Removing

WARNING: This page is about a different car, the 2020 Audi A4, 2019 Audi A4, 2018 Audi A4, and 2017 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER .

-- Remove the front muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING, VEHICLE WITHOUT PARTICULATE FILTER .

-- Remove the bolt -arrow- from the particulate filter bracket.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow- from the catalytic converter bracket.

Courtesy of AUDI OF AMERICA, LLC

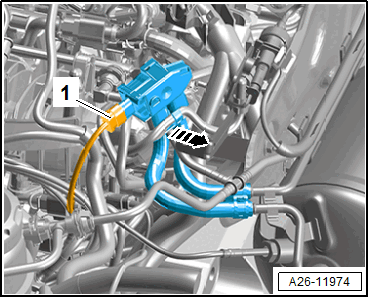

-- Disconnect the connector -1- for the Differential Pressure Sensor -G505-.

Fig 1: Locating Differential Pressure Sensor -G505-

Courtesy of AUDI OF AMERICA, LLC

-- Free up the bracket with the differential pressure sensor on the intake manifold in direction of -arrow-.

All additional procedures are described under: Refer to ENGINE COVER .
