Overview - Muffler, Vehicles With Natural Gas Fuel Systems And Fwd: Notes

WARNING: This page is about a different car, the 2020 Audi A4, 2019 Audi A4, 2018 Audi A4, and 2017 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

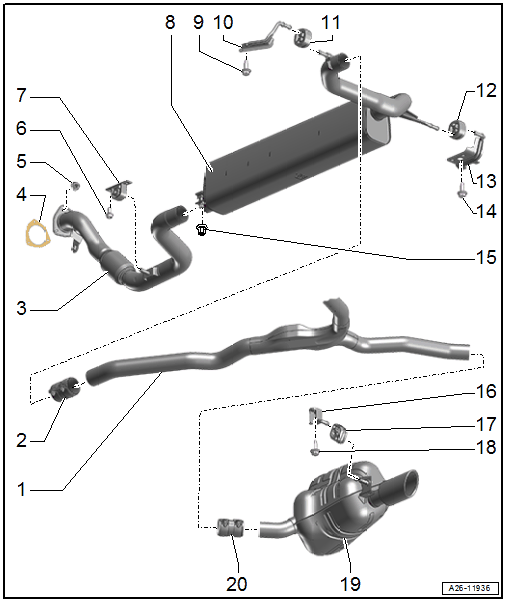

Fig 1: Exploded View Of Muffler, Vehicles With Natural Gas Fuel Systems & FWD

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Exhaust Pipe
- Original equipment as one unit with the rear muffler. If a repair is required replace each separately
- Separating point. Refer to EXHAUST PIPES/MUFFLERS, DISCONNECTING .
- Exhaust System, Installing without Tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Front Clamping Sleeve
- Before tightening, align the exhaust system without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Installation position. Refer to Figure.
- Tighten the threaded connections equally to 23 Nm.
Front Exhaust Pipe
- With a coupling
  CAUTION:
  Risk of damaging the coupling.
  - Coupling must not be bent more than 10°.
  - Do not load the coupling on the cable.
  - Do not damage the wire mesh on the coupling.
- Removing and installing. Refer to FRONT EXHAUST PIPE, REMOVING AND INSTALLING .
- Exhaust System, Installing without Tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Seal
- Replace after removing.
Nut
- 23 Nm
Bolt
- 23 Nm
Mount
- Replace if damaged
- Check the pretension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Front Muffler
- Removing and installing. Refer to FRONT MUFFLER, REMOVING AND INSTALLING, VEHICLES WITH NATURAL GAS FUEL SYSTEMS .
- Exhaust System, Installing without Tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Bolt
- Tightening specifications. Refer to Underbody Trim Panel .
Bracket
Retaining Loop
- Replace if damaged
- Exhaust System, Installing without Tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Retaining Loop
- Replace if damaged
- Exhaust System, Installing without Tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Bracket
Bolt
- Tightening specifications. Refer to UNDERBODY TRIM PANEL .
Nut
- 23 Nm
Bracket
Retaining Loop
- Replace if damaged
- Exhaust System, Installing without Tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Bolt
- 23 Nm
Rear Muffler
- In original equipment as one unit with front muffler. If a repair is required replace each separately
- Separating point. Refer to EXHAUST PIPES/MUFFLERS, DISCONNECTING .
- Exhaust System, Installing without Tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Rear Clamping Sleeve
- Before tightening, align the exhaust system without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Installation position. Refer to Figure.
- Tighten the threaded connections equally to 23 Nm.
