Rear Muffler Without Separating Point, Removing
WARNING: This page is about a different car, the 2020 Audi A4, 2019 Audi A4, 2018 Audi A4, and 2017 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the left and right diagonal brace. Refer to UNDERBODY TRIM PANEL .
WARNING:
Risk of accident due to the weight of the muffler.
- A second technician is required to remove the rear muffler.

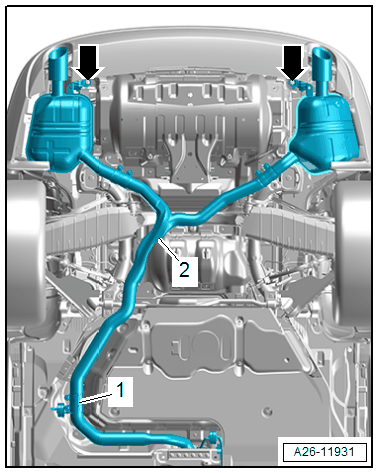

-- Loosen the clamping sleeve -1- and push it rearward.
-- Remove the bolts -arrows- and the muffler -2-.
-- Re-install the bolts all the way.
