Front Muffler, Removing And Installing, Vehicles With Natural Gas Fuel Systems: Removing

WARNING: This page is about a different car, the 2020 Audi A4, 2019 Audi A4, 2018 Audi A4, and 2017 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the tunnel brace. Refer to UNDERBODY TRIM PANEL .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

WARNING:

There is a risk of accident due to the weight of the muffler.

A second technician is required to remove the front muffler.

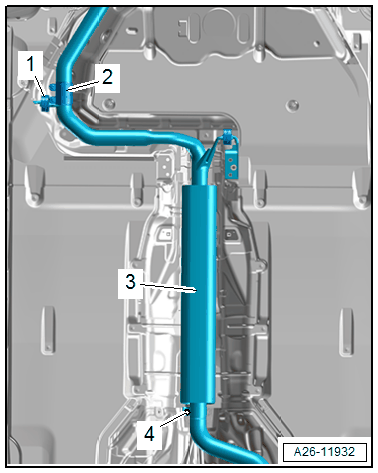

-- Loosen the lock washer -4-.

-- Loosen the clamping sleeve -2- and slide it toward the rear.

-- Disengage the mounting -1- from the exhaust system.

-- Remove the front muffler -3- from the front exhaust pipe.
