Front Exhaust Pipe, Removing And Installing: Removing

WARNING: This page is about a different car, the 2020 Audi A4, 2019 Audi A4, 2018 Audi A4, and 2017 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER .

-- Remove the nuts that are accessible -1- from above for the front exhaust pipe.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rear noise insulation. Refer to NOISE INSULATION .

-- Remove the bolts -arrows- from the front exhaust pipe.

Fig 1: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

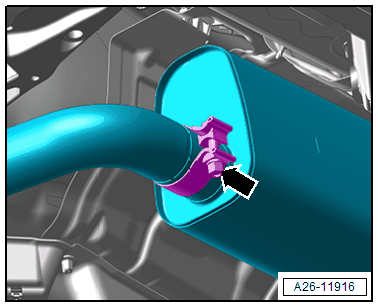

-- Loosen the clamp -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Risk of damaging the coupling.

Coupling must not be bent more than 10°.
Do not load the coupling on the cable.
Do not damage the wire mesh on the coupling.

-- Remove the front exhaust pipe carefully from the front muffler.
