Oil Pump, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the oil pan lower section. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .

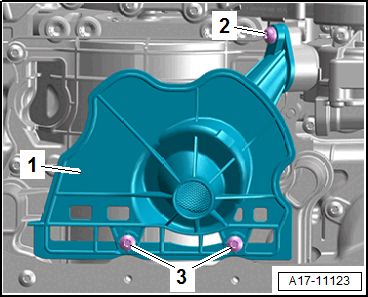

-- Remove the bolts -2 and 3- and remove the intake tube -1-.

Courtesy of AUDI OF AMERICA, LLC

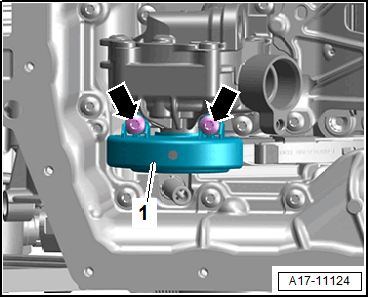

-- Remove the bolts -arrows- and then remove the chain guard -1-.

Courtesy of AUDI OF AMERICA, LLC

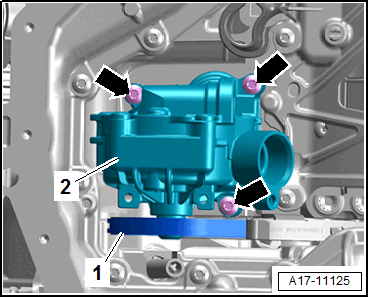

-- Remove the bolts -arrows- and remove the chain -1- from the chain sprocket.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the oil pump -2-.
