Oil Pump, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
- Replace the seal and O-ring after removal.

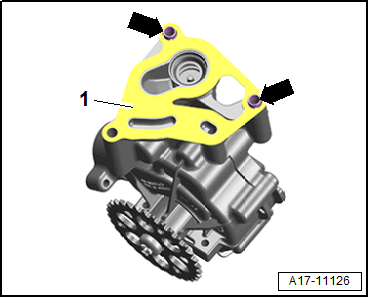

-- Check if the alignment sleeves -arrows- for centering the oil pump are installed.
-- Place the seal -1- on the alignment sleeves.
-- Install the oil pan lower section. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .
