Engine Oil Cooler, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the left and right turbocharger. Refer to TURBOCHARGER, REMOVING AND INSTALLING .

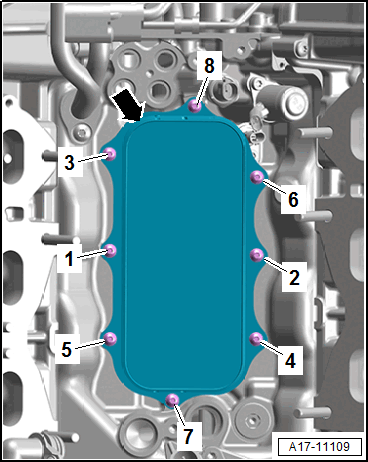

-- Remove the bolts in the sequence -8 to 1- and remove the engine oil cooler -arrow-.
- To prevent contamination of the lubricating system and the bearing, cover open components and the engine oil cooler with a clean cloth.
