Oil Separator, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.

Depending on the model, preliminary work may be required. Refer to OIL SEPARATOR, REMOVING AND INSTALLING .

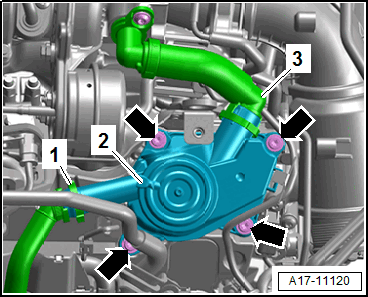

Cylinder Bank 1 (Right):

Courtesy of AUDI OF AMERICA, LLC

-- Remove the crankcase ventilation hoses -1 and 3- by pressing the release buttons on both sides.

-- If necessary, free up the wiring harness.

-- Remove the bolts -arrows- and the oil separator -2-.

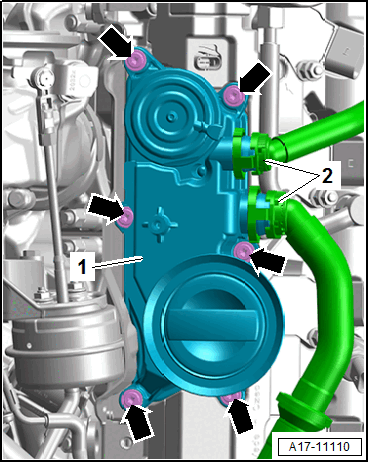

Audi RS6 / RS7 / A8 / RSQ8 / SQ8 / SQ7, Cylinder Bank 2 (left):

Courtesy of AUDI OF AMERICA, LLC

-- Remove the crankcase ventilation hoses -2- by pressing the release buttons on both sides.

-- Remove the bolts -arrows- and the oil separator -1-.

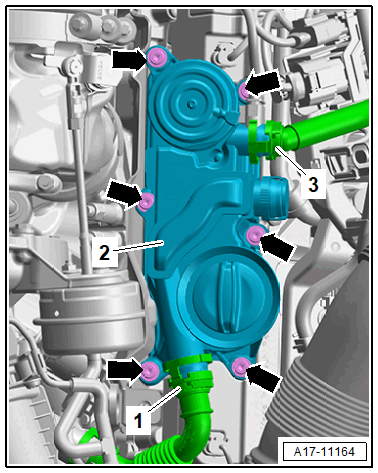

Audi S8, Cylinder Bank 2 (Left):

Courtesy of AUDI OF AMERICA, LLC

-- Remove the crankcase ventilation hoses -1 and 3- by pressing the release buttons on both sides.

-- Remove the bolts -arrows- and the oil separator -2-.
