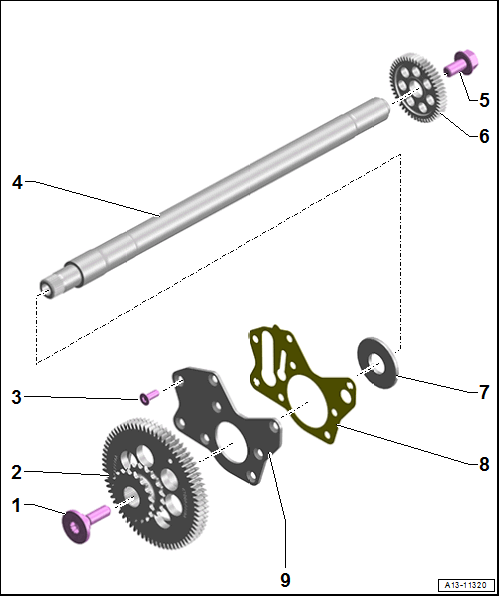

Overview - Drive Axle
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 15 Nm +45°
- Replace after removing
- Toothed gear
- With the chain sprocket for the camshaft timing chain
- Bolt
- 9 Nm
- Replace after removing
- Self-locking
- Drive Axle
- Removing and Installing. Refer to DRIVE AXLE, REMOVING AND INSTALLING .
- Bolt
- 15 Nm +45°
- Replace after removing
- Coolant Pump Housing Gear
- The side labeling points outward
- Thrust Washer
- Seal
- Replace after removing
- Gear Carrier
