Coolant Pipe To Lock Carrier, Removing And Installing, Vehicles Without Auxiliary Radiator For Transmission Fluid Cooling: Removing
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front noise insulation. Refer to OVERVIEW - NOISE INSULATION .
-- Place a cloth underneath to catch any escaping coolant.

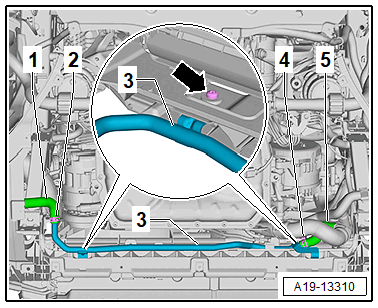

-- Clamp off the coolant hoses -1 and 5- with Hose Clamps - Up To 25mm: 3094 .
-- Remove the coolant hoses -1 and 5- from the coolant pipe -3- to do so loosen the hose clamps -2 and 4-.
-- Remove the left and right bolt -arrow- and remove the coolant pipe -3-.
