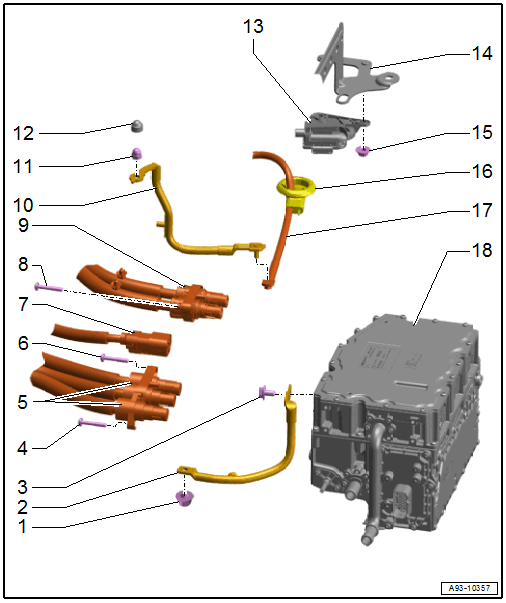

Component Location Overview - Electric Drive Power And Control Electronics
WARNING: This page is about a different car, the 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- Tightening specification -item 2- COMPONENT LOCATION OVERVIEW - POTENTIAL EQUALIZATION CABLES, AUDI Q7 THROUGH 10/19/2020.
- Potential Equalization Cable
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - POTENTIAL EQUALIZATION CABLES, AUDI Q7 THROUGH 10/19/2020 .
- Bolt
- Tightening specification -item 4- COMPONENT LOCATION OVERVIEW - POTENTIAL EQUALIZATION CABLES, AUDI Q7 THROUGH 10/19/2020.
- Bolt
- Tightening specification -item 5- COMPONENT LOCATION OVERVIEW - HIGH-VOLTAGE CABLES, ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS, DRIVE MOTOR AND ELECTRICAL A/C COMPRESSOR.
- Quantity: 2
- Drive Motor High-Voltage Wiring Harness -PX2-
- To the Electric Drive Motor -V141-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - HIGH-VOLTAGE CABLES .
- Bolt
- Tightening specification -item 1- COMPONENT LOCATION OVERVIEW - HIGH-VOLTAGE CABLES, ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS AND HYBRID BATTERY UNIT.
- Quantity: 2
- Electrical A/C Compressor High-Voltage Cable -P3-
- To the Electrical A/C Compressor -V470-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - HIGH-VOLTAGE CABLES .
- Bolt
- Tightening specification -item 12- COMPONENT LOCATION OVERVIEW - HIGH-VOLTAGE CABLES, ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS, DRIVE MOTOR AND ELECTRICAL A/C COMPRESSOR.
- Quantity: 2
- High-Voltage Wiring Harness for High-Voltage Battery -PX1-
- From the Hybrid Battery Unit -AX1-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - HIGH-VOLTAGE CABLES .
- B+ Wire
- Supply line for the Electric Drive Power and Control Electronics -JX1-
- Nut
- 17 Nm
- Cap
- Housing
- For the B+ wire
- Left Bracket
- For Electric Drive Power and Control Electronics -JX1-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS AND MOUNT .
- Nut
- 1.5 Nm
- Quantity: 2
- Grommet
- B+ Wire
- Tighten the nut to 7.5 Nm
- To the Wire Junction -TV1-
- Electric Drive Power and Control Electronics -JX1-
- Removing and Installing. Refer to ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS, REMOVING AND INSTALLING .
