Cam Position Sensor 3 -G300-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Depending on the model, preliminary work may be required. Refer to CAMSHAFT POSITION SENSOR, REMOVING AND INSTALLING .
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

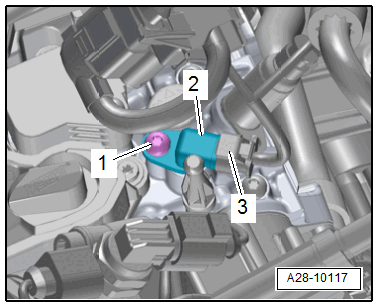

-- Disconnect the connector -3- from the Cam Position Sensor 3 -G300- -2-.
-- Remove the bolt -1- and remove the camshaft position sensor.
