Center Armrest, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the trim from the center armrest. Refer to CENTER ARMREST TRIM, REMOVING AND INSTALLING .

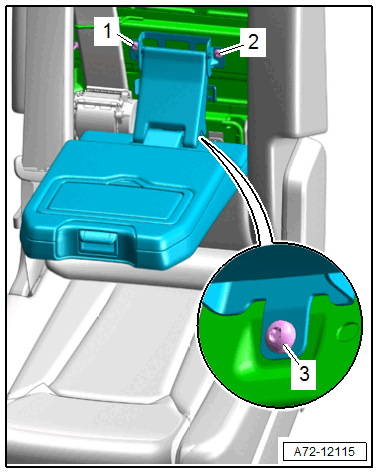

-- Remove the bolts -1, 2, 3- and remove the center armrest.
TIP:
The bolt -3- is accessible through the gap between the seat cushion and the lower edge of the center armrest when the center armrest is partially closed.
