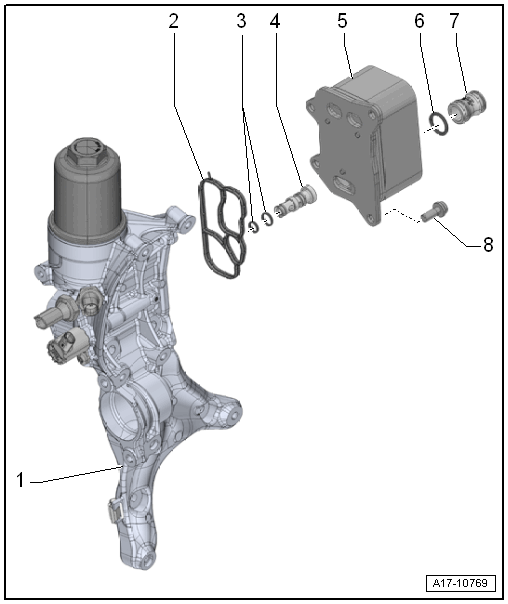

Overview - Engine Oil Cooler
WARNING: This page is about a different car, the 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Sub-Assembly Bracket
- There are different versions. Refer to the Parts Information for the allocation.
- Removing and Installing. Refer to SUB-ASSEMBLY BRACKET, REMOVING AND INSTALLING .
- Seal
- Replace after removing
- O-Rings
- Replace after removing
- coat with engine oil
- Mechanical Switch Valve
- Replacing. Refer to MECHANICAL SWITCH VALVE, REMOVING AND INSTALLING .
- Engine Oil Cooler
- Removing and Installing. Refer to ENGINE OIL COOLER, REMOVING AND INSTALLING .
- Seal
- Replace after removing
- Coat with coolant
- Connection
- Bolt
- Replace after removing
- 8 Nm +45°
