Exhaust Gas Temperature Sensor 3 -G495-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the tower brace. Refer to TOWER BRACE, REMOVING AND INSTALLING .

-- Disconnect the connector -2- and free up the wiring harness.

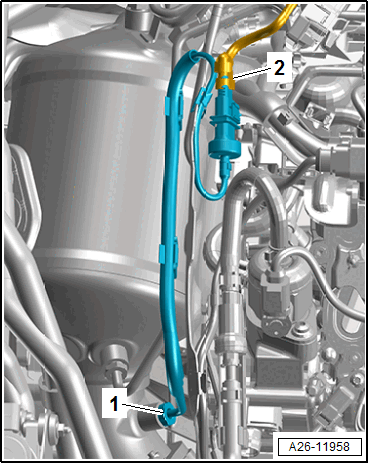

Fig 1: Identifying Temperature Sensor Wire
GWWA26-11958Courtesy of AUDI OF AMERICA, LLC

-- Remove the Exhaust Gas Temperature Sensor 3 -G495- -1-.
