Three-Phase Current Drive, Transporting
WARNING: This page is about a different car, the 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Transmission Support Jig: 3336
- Shop Crane: VAS6100
Procedure
- The Three-Phase Current Drive -VX54- is removed. Refer to Three-Phase Current Drive -VX54-, REMOVING AND INSTALLING .

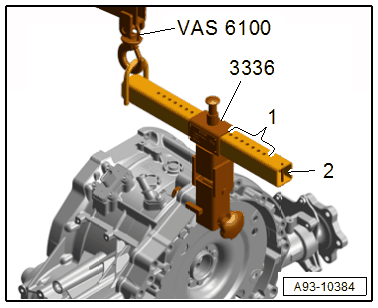

-- Tighten the : 3336 on the Three-Phase Current Drive -VX54-.
-- Adjust the support arm -2- on the sliding bar with the locking pin.
1 -
Number of Viable Holes = 7
-- Press the Three-Phase Current Drive -VX54- with the installed : 3336 with the : VAS6100 .
