Camshaft Position Sensor, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

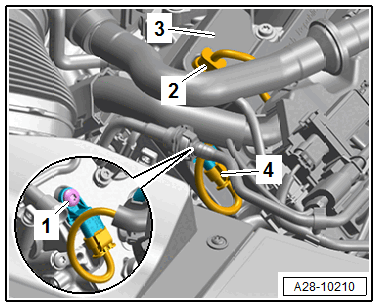

Camshaft Position Sensor 4 -G301- Cylinder Bank 2 Left:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors:

2 - For the Cylinder 5 Exhaust Camshaft Adjuster 1 -F466-

4 - For the Camshaft Position Sensor 4 -G301-

-- Push the upper section of the noise insulation -3- carefully to the side.

-- Remove the bolt -1- and remove the camshaft position sensor.

Continuation for All:

All additional procedures are described. Refer to CAMSHAFT POSITION SENSOR, REMOVING AND INSTALLING .
