Cylinder Head, Removing And Installing: Removing

• During installation, all cable ties must be installed at the same location.
• Always seal off any open channels of the intake and exhaust tract with suitable plugs, for example from the : VAS6122  .

-- Remove the camshafts. Refer to CAMSHAFT, REMOVING AND INSTALLING .

-- Remove the Throttle Valve Control Module -GX3-. Refer to Throttle Valve Control Module -GX3-, REMOVING AND INSTALLING .

-- Drain the coolant. Refer to DRAIN THE COOLANT .

-- Remove the front muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING .

Vehicles with a Particulate Filter:

Fig 1: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow- from the particulate filter bracket.

-- Remove the bolt -arrow- from the catalytic converter bracket.

Fig 2: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

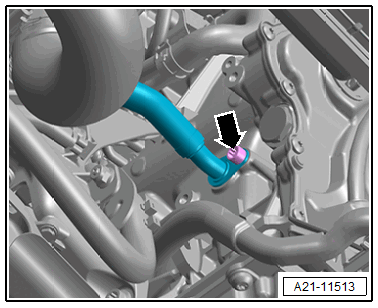

-- Place a cloth underneath to catch leaking engine oil.

-- Remove the bolt -arrow- and then remove the oil return line.

-- Disconnect the connectors and free up the wires.

Courtesy of AUDI OF AMERICA, LLC

1 -

For the Turbocharger Recirculation Valve -N249-

3 -

For Charge Air Pressure Control Module -GX34-

-- Press the release buttons on both sides and remove the crankcase ventilation hose -4-.

-- Remove the bolts -arrows- and remove the connection -2-.

-- Remove the bolts -arrows- and remove the heat shield -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Pry out the locking plates -arrows- and dispose.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 2- and also the oil supply line and the coolant line.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- and remove the turbocharger from the threaded pins.

-- Remove the right coolant pipe bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the connectors -2 and 3- from the bracket and disconnect.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -4 and 5-.

-- Remove the bolts -1- from the bracket.

-- Disconnect the connector -2- for the Intake Air Temperature Sensor -G42- / Manifold Absolute Pressure Sensor -G71-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors:

Courtesy of AUDI OF AMERICA, LLC

1. For the Oil Pressure Switch -F22-
2. For the Reduced Oil Pressure Switch -F378-
3. For the Piston Cooling Nozzle Control Valve -N522-

-- Loosen the hose clamp -1- and remove the rear coolant hose.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2- for the Engine Coolant Temperature Sensor - G62-.

-- Remove the spark plugs with the : 3122B  .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

Fig 3: Cylinder Head Loosening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cylinder head bolts using the : T40270  in sequence -1 through 10-.

-- Check if all hose and line connections are loosened.

-- Remove the cylinder head.

-- Lay the cylinder head on a soft surface, such as foam.

-- Seal the open channels of the intake and exhaust tract with clean cloths or with thoroughly cleaned plugs from the : VAS6122  .
