Muffler, Removing And Installing, AUDI Q5: Removing

WARNING: This page is about a different car, the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, and 2021 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear tunnel brace. Refer to OVERVIEW - UNDERBODY BRACING .

-- Loosen the clamping sleeve -arrows- and push toward the rear.

Fig 1: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging the coupling due to improper handling.

- Coupling must not be bent more than 10°.

- Do not load the coupling on the cable.

-- Slightly lower the front muffler and remove the clamping sleeve.

-- Tie up the front muffler.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of accident due to the heavy weight of the muffler.

- A second technician is required for the following work steps.

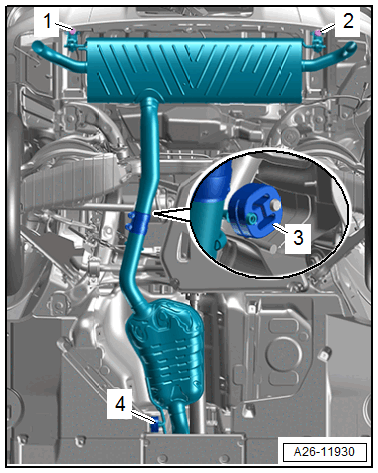

-- Disengage the retaining loop -3-.

-- Remove the bolts -1 and 2- and then remove the muffler.
