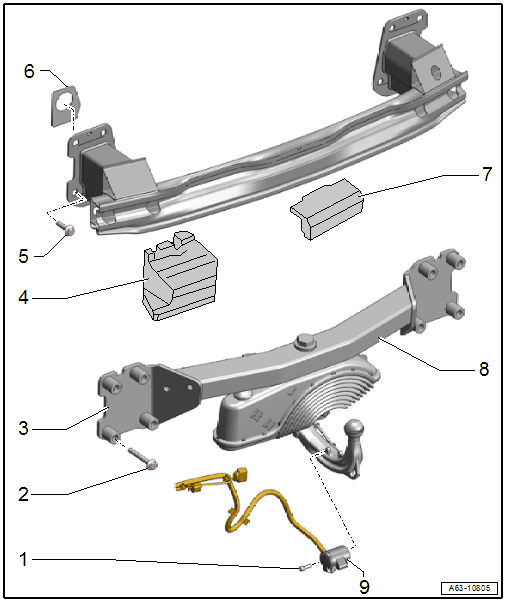

Overview - Impact Member
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 3.5 Nm
- Quantity: 2
- Bolt
- 110 Nm
- Quantity: 4
- Impact Member
- For vehicles with a trailer hitch
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING, WITH TRAILER HITCH .
- Outer Spacer
- Bolt
- 110 Nm
- Quantity: 4
- Foam Seal
- Center Filler Piece
- Impact Member
- For vehicles without a trailer hitch
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING, WITHOUT TRAILER HITCH .
- Socket
- Removing and installing. Refer to Trailer Hitch .
