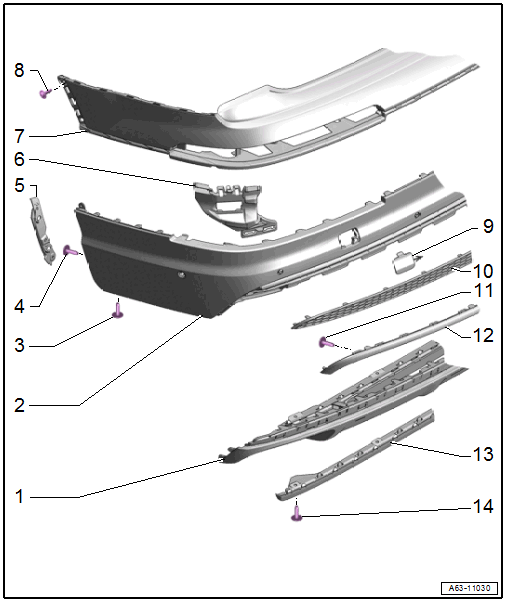

Overview - Bumper Cover, S Line
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Bumper Cover Lower Section
- There are different versions.
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, S LINE .
- Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
- Overview - Bumper Cover Mount. Refer to OVERVIEW - BUMPER COVER MOUNT
- Bolt
- 2.5 Nm
- Quantity: 2
- Bolt
- 2.5 Nm
- Quantity: 2
- Intermediate Piece
- For securing the wheel housing liner
- Mount
- For lane change assistance control module
- Overview. OVERVIEW - LANE CHANGE ASSISTANCE .
- Bumper Cover Upper Section
- Removing and Installing. Refer to BUMPER COVER UPPER SECTION, REMOVING AND INSTALLING .
- Overview - Bumper Cover Mount. Refer to OVERVIEW - BUMPER COVER MOUNT
- Bolt
- 2.5 Nm
- Quantity: 2
- Cap
- for the tail lamp bolt
- Trim
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Trim Molding
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, S LINE .
- Spoiler
- Removing and Installing. Refer to SPOILER, REMOVING AND INSTALLING .
- Bolt
- 2.5 Nm
- Quantity: 4
