Bumper Cover Lower Section, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear wheel cover. Refer to WHEEL COVER, REMOVING AND INSTALLING, REAR .

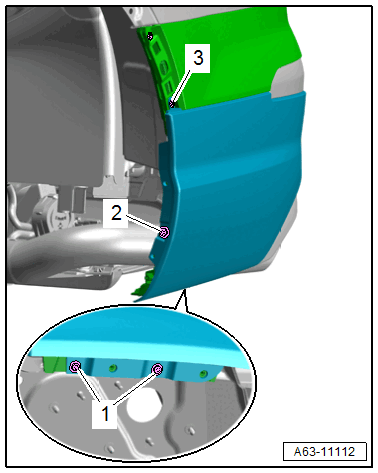

-- Remove the bolts -1, 2, and 3-.
-- Remove the bolts -arrows-.

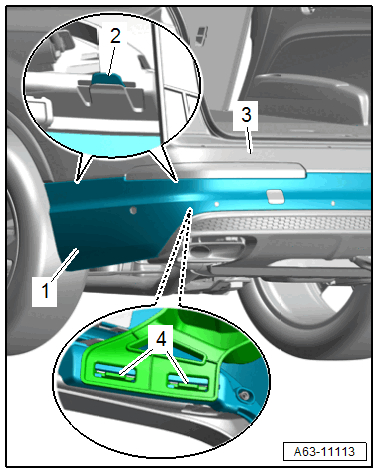

-- Release the catches -2 and 4-.
-- Remove the bumper cover lower section -1- from the bumper cover upper section -3-.
-- Place the bumper cover lower section on a soft surface.
