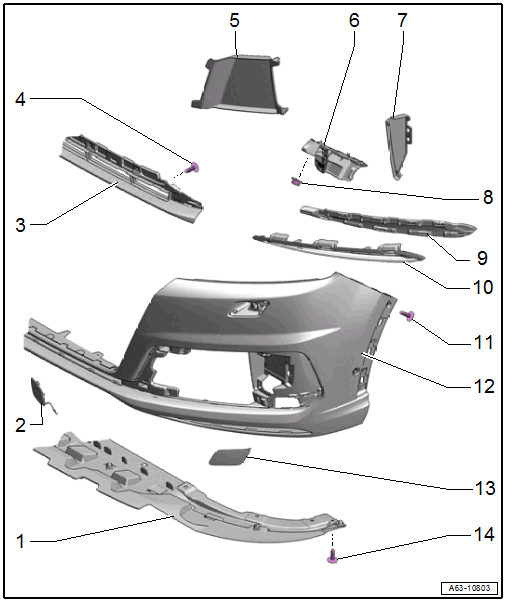

Overview - Bumper Cover, S Line
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- End Panel
- The bumper cover
- Removing and Installing. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .
- Towing Eye Cover
- Air Duct
- Center
- Removing and Installing. Refer to CENTER AIR DUCT, REMOVING AND INSTALLING, S LINE .
- Bolt
- 2 Nm
- Quantity: 4
- Cap
- For the air intake grille
- Equipped on some models
- Removing and Installing. Refer to AIR INTAKE GRILLE CAP, REMOVING AND INSTALLING .
- Mount
- For the bumper cover
- To secure the headlamp
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Side Cap
- For the air intake grille
- Equipped on some models
- Removing and Installing. Refer to AIR INTAKE GRILLE CAP, REMOVING AND INSTALLING .
- Nut
- 4 Nm
- Quantity: 5
- Cover
- for the lower air intake grille
- Removing and Installing. Refer to SIDE AIR DUCT, REMOVING AND INSTALLING, S LINE .
- Side Air Intake Grille
- Removing and Installing. Refer to SIDE AIR DUCT, REMOVING AND INSTALLING, S LINE .
- Bolt
- 2.5 Nm
- Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Overview - Rear Reflector. Refer to OVERVIEW - REAR REFLECTOR
- Overview - Covers and Air Guides. Refer to OVERVIEW - COVERS AND AIR GUIDES
- Washer Nozzle Cover
- For the headlamp washer system
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 8
