Impact Member, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the headlamps. Refer to HEADLAMP, REMOVING AND INSTALLING .
-- Remove the bolts -3 and 4-.
CAUTION:
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge the static electricity: quickly touch the door striker.

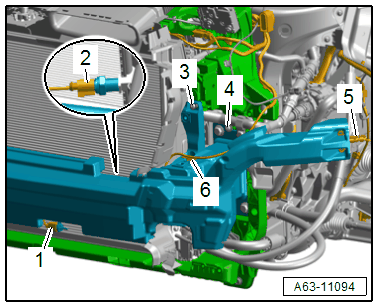

-- Disconnect the connectors -1, 2 and 5-.
-- Free up the wiring harness -6-.

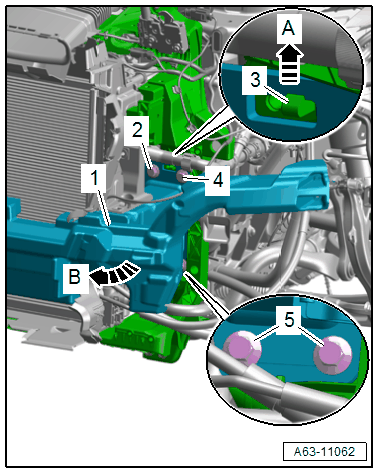

-- Mark the bolts for reinstallation.
-- Remove the bolts -2, 4 and 5-.
-- Push the impact member -1- far enough upward -arrow A- until the tab -3- is free.
-- Pivot the impact member on the left toward the front -arrow B-.
-- Repeat the procedure on the opposite side.
-- Remove the impact member.
-- If the impact member is to be replaced, remove the following components additionally:
- Molded Foam Piece. Refer to MOLDED FOAM PART, REMOVING AND INSTALLING .
- Remove the bracket for the outside air temperature sensor. Refer to Outside Air Temperature Sensor -G17- BRACKET, REMOVING AND INSTALLING .
