Rear Lid Tail Lamp, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn the light switch to position "0".
-- Remove the tail lamp cover. Refer to TAIL LAMP COVER, REMOVING AND INSTALLING .

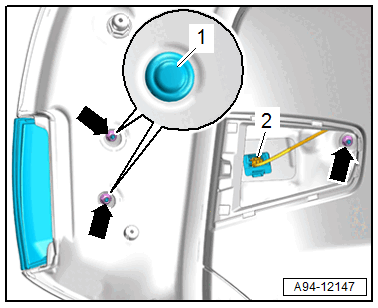

-- Disconnect the connector -2-.
-- Remove the grommets -1-.
-- Remove the nuts -arrows-.
-- Remove the tail lamp.
