Rear Lid Tail Lamp, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of AUDI OF AMERICA, LLC
|
Install in reverse order of removal and note the following:

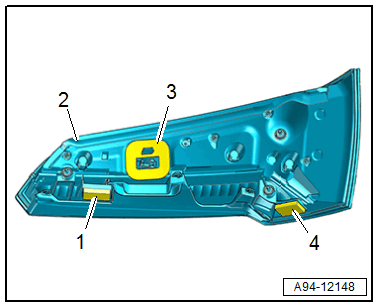

-- Check the self-adhesive seal -3- and spacers -1 and 4- on the tail lamp -2- for damage.
- A damaged or incorrectly attached seal must be replaced.
TIP:
Water can get into the vehicle interior due to a damaged or incorrectly applied seal.
