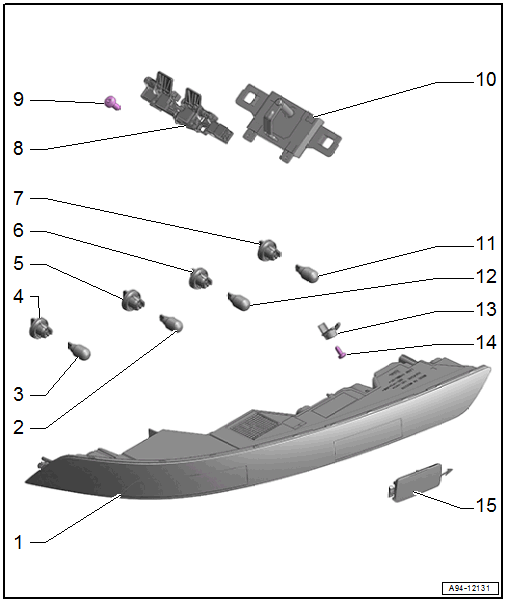

Overview - Body Tail Lamps
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Lower Tail Lamp
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to LOWER TAIL LAMP, REMOVING AND INSTALLING .
- Brake and Tail Lamp Bulb
- Left Brake/Tail Lamp Bulb 3 -M82-
- Right Brake/Tail Lamp Bulb 3 -M83-
- 12 V, 16 W (W16W)
- Bulb, Replacing. Refer to LOWER TAIL LAMP BULBS IN BUMPER COVER, REMOVING AND INSTALLING .
- Rear Turn Signal Bulb
- Left Rear Turn Signal Bulb 2 -M80-
- Right Rear Turn Signal Bulb 2 -M81-
- 12 V, 21 W
- Bulb, Replacing. Refer to LOWER TAIL LAMP BULBS IN BUMPER COVER, REMOVING AND INSTALLING .
- Bulb Socket
- Bulb Socket
- Bulb Socket
- Bulb Socket
- Rear Lid -Closed- Sensor
- Rear Lid -Closed- Sensor 1 -G525-
- Rear Lid -Closed- Sensor 2 -G526-
- Removing and Installing. Refer to REAR LID - CLOSED - SENSOR 1/ SENSOR 2 -G525- / -G526-, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 2
- Striker
- For the rear lid latch
- Rear Fog Lamp Bulb
- Left Rear Fog Lamp Bulb -L46-
- Right Rear Fog Lamp Bulb -L47-
- 12 V, 16 W (W16W)
- Bulb, Replacing. Refer to LOWER TAIL LAMP BULBS IN BUMPER COVER, REMOVING AND INSTALLING .
- Back-Up Lamp Bulb
- Left Back-Up Lamp Bulb -M16-
- Right Back-Up Lamp Bulb -M17-
- 12 V, 16 W (W16W)
- Bulb, Replacing. Refer to LOWER TAIL LAMP BULBS IN BUMPER COVER, REMOVING AND INSTALLING .
- Fastener
- For the bolt
- Bolt
- 2.5 Nm
- Cap
- For the bolt
- In the bumper cover
