Lower Tail Lamp, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn the light switch to position "0".
-- To protect the paint in the area around the cap, tape it off with a soft cloth.

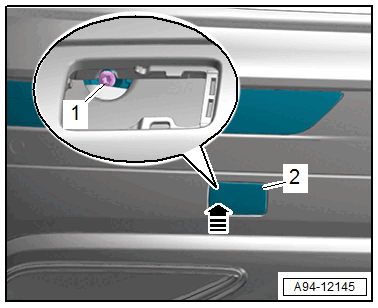

-- Push the cap -2- inward in direction of -arrow- from the outside.
-- Remove the cap and let it hang.
-- Remove the bolt -1-.
-- Remove the bolt -1-.

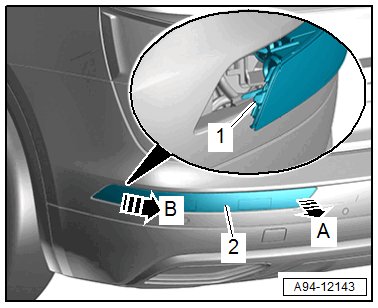

-- Using the scraper, pivot the lower tail lamp -2- slightly out of the bumper cover in direction of -arrow A- on the inside.
-- With the scraper release lever positioned at the outside, push the lower tail lamp out of the bumper cover in direction of -arrow B-. Doing so will detach the retainer -1-.
-- Remove the lower tail lamp from the bumper cover and disconnect the connector.
