Lower Tail Lamp, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:

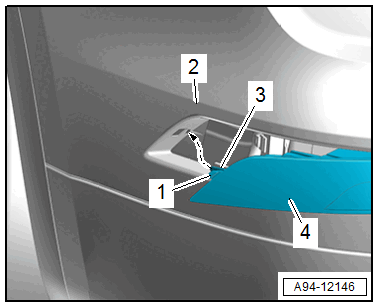

-- First insert the lower tail lamp -4- into the bumper cover -2- at the outside. The guide -3- must engage in the mount in direction of -arrow- while doing so.
-- Push the lower tail lamp until it stops. The retainer -1- must audibly engage while doing so.
-- Tighten the bolt.
-- Push the cap into the bumper cover until it clicks into place.
