Rear Parking Aid Warning Buzzer -H15-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Unclip the front of the side cover -1- using the :3409 in direction of -arrow A-.
-- Detach the side cover from the D-pillar trim panel in direction of -arrow B- and remove it.

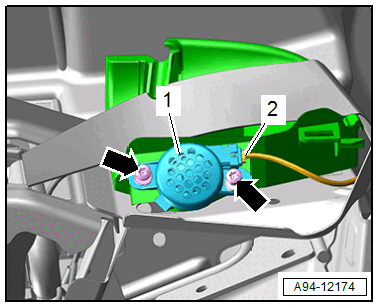

-- Remove the bolts -arrows-.
-- Remove the rear parking aid warning buzzer -1- with the expanding clip.
-- Disconnect the connector -2-.
