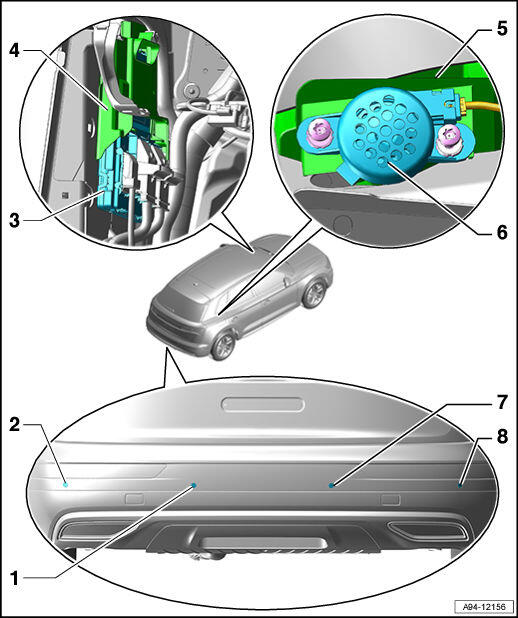

Overview - Rear Parking Aid
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Left Rear Center Parking Aid Sensor -G204-
- Removing and Installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
- Left Rear Parking Aid Sensor -G203-
- Removing and Installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
- Vehicle Electrical System Control Module -J519-
- Component Location Overview. Refer to OVERVIEW - CONTROL MODULES .
- Bracket
- For vehicle electrical system control module
- Belt Guide
- Right rear parking aid sensor
- Rear Parking Aid Warning Buzzer -H15-
- Discontinued as of MY 2019 and the Front Parking Aid Warning Buzzer -H22- is exclusively installed on all parking aid versions.
- Removing and Installing. Refer to Rear Parking Aid Warning Buzzer -H15-, REMOVING AND INSTALLING .
- Right Rear Center Parking Aid Sensor -G205-
- Removing and Installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
- Right Rear Parking Aid Sensor -G206-
- Removing and Installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
