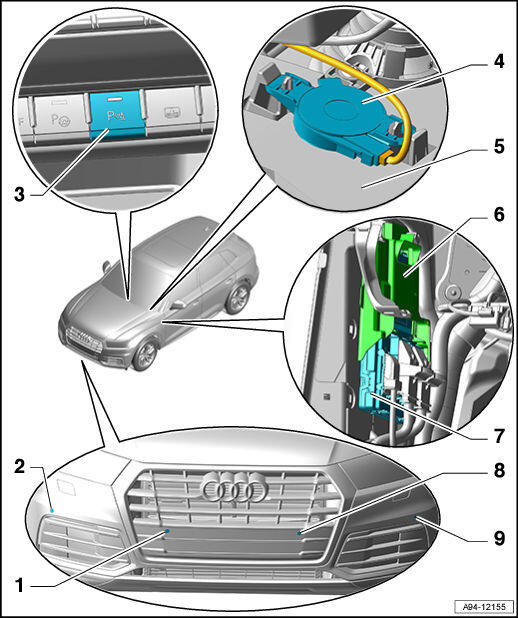

Overview - Front Parking Aid
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Right Front Center Parking Aid Sensor -G253-
- Removing and Installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
- Right Front Parking Aid Sensor -G252-
- Removing and Installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
- Parking Aid Button -E266-
- Removing and Installing. Refer to BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING .
- Front Parking Aid Warning Buzzer -H22-
- Removing and Installing. Refer to Front Parking Aid Warning Buzzer -H22-, REMOVING AND INSTALLING .
- Driver Side Instrument Panel Cover
- Bracket
- For vehicle electrical system control module
- Vehicle Electrical System Control Module -J519-
- Component Location Overview. Refer to OVERVIEW - CONTROL MODULES .
- Left Front Center Parking Aid Sensor -G254-
- Removing and Installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
- Left Front Parking Aid Sensor -G255-
- Removing and Installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
