Overview - High-Mounted Brake Lamp

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

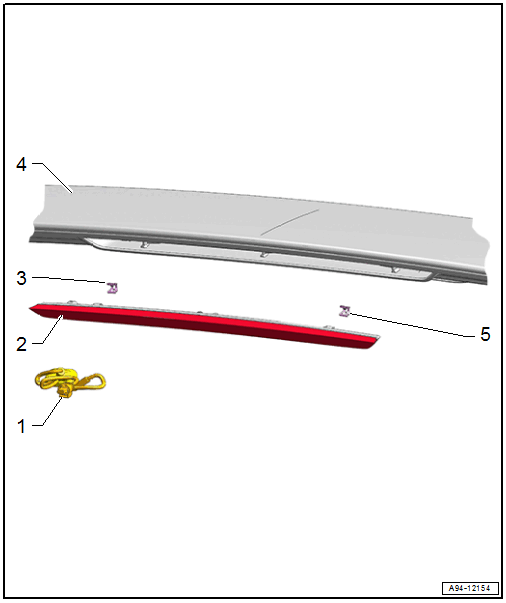

Fig 1: Exploded View Of High-Mounted Brake Lamp
GWWA94-12154Courtesy of AUDI OF AMERICA, LLC
  1. Wiring Harness Adapter
  2. High-Mounted Brake Lamp
  3. Clip
  4. Spoiler
  5. Clip
