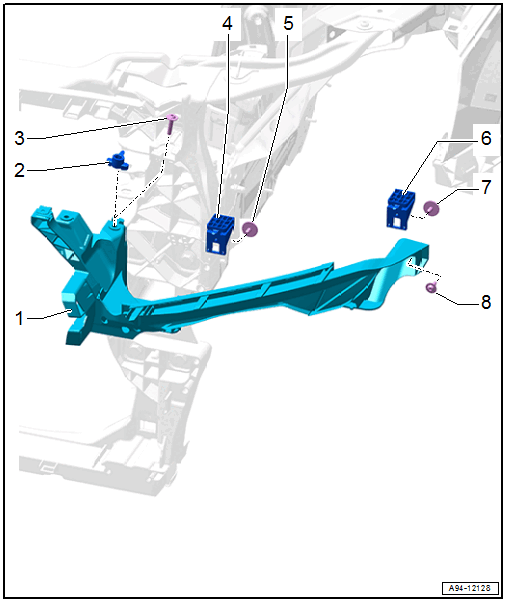

Overview - Headlamps, Headlamp Mount
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Mount
- For headlamp
- There are different versions.
- Removing and Installing. Refer to HEADLAMP MOUNT, REMOVING AND INSTALLING .
- Retainer
- For the adjusting screw
- Adjusting Screw
- For adjusting the bumper cover with the headlamp to the body contour
- Headlamp Bracket
- Removing and Installing. Refer to HEADLAMP MOUNT, REMOVING AND INSTALLING .
- Screw
- 6 Nm
- Headlamp Bracket
- Removing and Installing. Refer to HEADLAMP MOUNT, REMOVING AND INSTALLING .
- Screw
- 6 Nm
- Screw
- 4.5 Nm
