Left And Right Hid Headlamp Bulb -L13- / -L14-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Left side of the vehicle: open the bracket -1- and free up the refrigerant lines -2-.

Courtesy of AUDI OF AMERICA, LLC

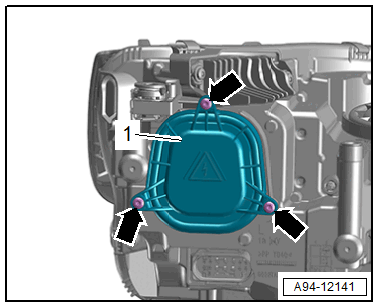

-- Remove the screws -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the housing cover -1-.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Extremely dangerous due to high-voltage.

When the headlamps are switched on, the HID headlamp components marked with the yellow high-voltage symbol are under high voltage. Electric shock may occur if components are contacted.

- Never touch the components marked with the yellow high-voltage symbols when the lighting is switched on.

- When performing procedures, switch off the ignition and all electrical equipment, and place the ignition key outside of the vehicle.

- Do not operate the flashers.

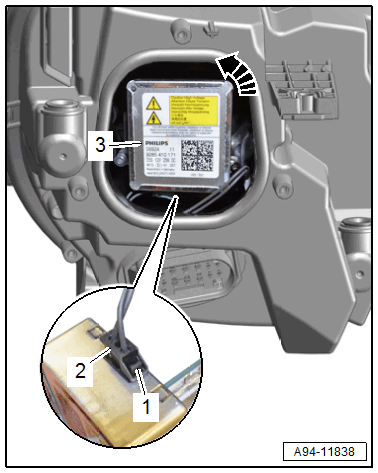

-- Turn the HID headlamp bulb -3- counter-clockwise -arrow- and remove it from the housing.

-- Press the release button -1- to disconnect the connector -2-.
