Left And Right Front Turn Signal Bulb -M5- / -M7-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

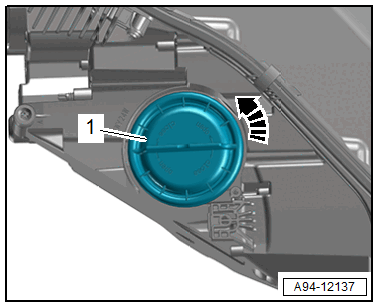

GWWA94-12137Courtesy of AUDI OF AMERICA, LLC

-- Turn the housing cover -1- counter-clockwise -arrow- and remove it from the headlamp.

-- Turn the bulb socket -1- in direction of -arrow-.

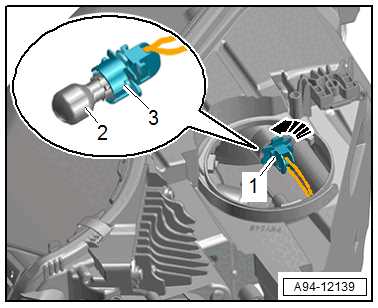

GWWA94-12139Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb -2- from the bulb socket -3-.
