Matrix Led Headlamp, Adjusting/Calibrating

Special tools and workshop equipment required

• Headlamp Adjusting Unit:VAS621001  from software version 1.10.000

• The Matrix LED headlamp is calibrated using the Vehicle Diagnostic Tester.
• For this procedure, the low beam is adjusted first on the left headlamp and then the matrix high beam is calibrated immediately after that. Then the low beam is calibrated on the right headlamp, followed by the matrix high beam.

The headlamp must be adjusted/calibrated after the following procedures:

• Headlamp position was changed (removing and installing, loosening and tightening the screws)
• The Driver Assistance Systems Front Camera -R242- was replaced.
• The Drivetrain Control Module -J775- was calibrated or replaced.
• The Vehicle Electrical System Control Module -J519- was replaced.
• Left LED Headlamp Power Output Module 1 -A31- /Right LED Headlamp Power Output Module 1 -A27- was replaced.
• The Left Rear Level Control System Sensor -G76-, Right Rear Level Control System Sensor -G77-, Left Front Level Control System Sensor -G78- or Right Front Level Control System Sensor -G289- was replaced.
• There is an entry in the DTC memory that indicates the matrix headlamp basic setting/calibration is missing.

Requirements

• Pay attention to the testing and adjustment requirements. Refer to HEADLAMP, ADJUSTING, GENERAL INFORMATION .

Procedure

-- Turn on the low beams (but not set at "Auto")

-- Connect the Vehicle Diagnostic Tester.

-- Select and start the Diagnostic  operating mode.

-- Select the Test plan  tab.

-- Select the Select individual test  button and select the following tree structure consecutively:

• Vehicle functionality
• Adjusting/calibrating headlamps

TIP:

When this program is selected, the suspensions moves into the air suspension normal level and the headlamps go into basic setting.

-- Start the selected program and follow the instructions on the Vehicle Diagnostic Tester display.

-- During the program, it will be asked to perform a headlamp adjustment.

Fig 1: Aligning Headlamp Adjusting Unit

Courtesy of AUDI OF AMERICA, LLC

-- Align the :VAS621001  at the distance -a- = 100 mm to the vehicle center. Refer to the :VAS621001  Owner's Literature.

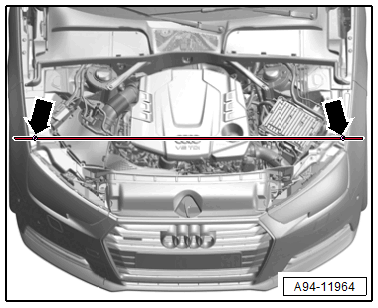

-- Check the parallel alignment of the :VAS621001  to the vehicle transverse axis by aligning the :VAS621001  laser beam on the left and right front fender bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

• To prevent a glare for other motorists, pay attention to the exact orientation of the headlamp adjusting unit.

-- Push the :VAS621001  in front of the left headlamp and check the parallel alignment again.

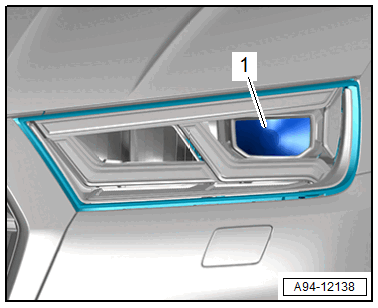

-- Align the :VAS621001  centered to the indicated segment -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Press the "OEM" button -arrow- on :VAS621001  in the main menu.

Courtesy of AUDI OF AMERICA, LLC

-- Select "Audi" -arrow-.

Courtesy of AUDI OF AMERICA, LLC

Shown on display:

Courtesy of AUDI OF AMERICA, LLC

-- Press the button -arrow- for the left low beam headlamp.

-- Wait until the light measurement is complete.

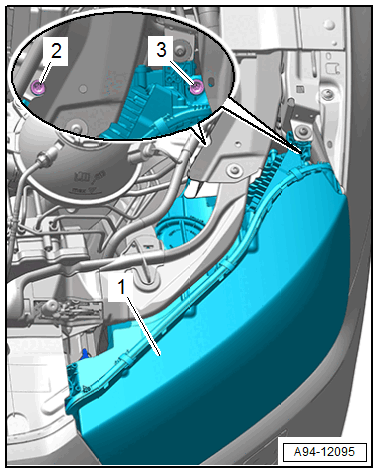

-- To adjust the height of the headlamp -1-, first set the cut-off line just under the dividing line with the adjustment screw -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Then adjust the cut-off line on the dividing line starting from the bottom.

-- For side adjustment, turn the adjusting screw -3-.

-- After successful adjustment of the low beams press the left button -arrow-.

Courtesy of AUDI OF AMERICA, LLC

A reference segment is activated as the program sequence continues.

-- Position the :VAS621001  centered to the headlamp reference segment.

Shown on display:

Courtesy of AUDI OF AMERICA, LLC

-- Press the button -arrow- for Matrix beam 1.0.

-- Wait until the light measurement is complete.

Shown on display:

Courtesy of AUDI OF AMERICA, LLC

• The angle value of the edge of the inner reference segment for the left headlamp is shown.

-- Enter the angle value -arrow- of the inner reference segment edge in the Vehicle Diagnostic Tester. While doing so, pay attention to the sign if necessary.

Shown on display:

Courtesy of AUDI OF AMERICA, LLC

-- Press the button -arrow-.

During the program sequence you will be asked to move the :VAS621001  from the left to the right side.

-- Align the :VAS621001  at the distance -a- = 100 mm to the vehicle center. Refer to the :VAS621001  Owner's Literature.

Fig 2: Aligning Headlamp Adjusting Unit

Courtesy of AUDI OF AMERICA, LLC

-- Check the parallel alignment of the :VAS621001  to the vehicle transverse axis by aligning the :VAS621001  laser beam on the left and right front fender bolts -arrows-.

Fig 3: Checking Parallel Alignment Of Headlamp Adjusting Unit

Courtesy of AUDI OF AMERICA, LLC

-- Push the :VAS621001  in front of the right headlamp to check the parallel alignment again.

-- Align the : VAS621001  centered on the low beams reflector segment.

Shown on display:

Courtesy of AUDI OF AMERICA, LLC

-- Press the button -arrow- for the right low beam headlamp.

-- Wait until the light measurement is complete.

-- Adjust the right headlamp low beams the same way as the left headlamp.

Shown on display:

Courtesy of AUDI OF AMERICA, LLC

-- After successful adjustment of the low beams press the right button -arrow-.

A reference segment is activated as the program sequence continues.

-- Position the :VAS621001  centered to the headlamp reference segment.

Shown on display:

Courtesy of AUDI OF AMERICA, LLC

-- Press the button -arrow- for Matrix beam 1.0.

-- Wait until the light measurement is complete.

Shown on display:

Courtesy of AUDI OF AMERICA, LLC

• The angle value of the edge of the inner reference segment for the right headlamp is shown.

-- Enter the angle value -arrow- of the inner reference segment edge in the Vehicle Diagnostic Tester. While doing so, pay attention to the sign if necessary.

-- After completing the calibration, read the DTC memory and correct any existing faults.
