Signature Lighting, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the air intake grille. Refer to OVERVIEW - BUMPER COVER .
-- Left side: remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Right side: remove the wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

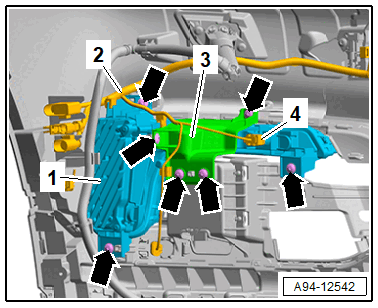

-- Disconnect the connector -4- and free up the wiring harness -2-.
-- Remove the bolts -arrows-.
-- Remove the bracket -3-.
-- Remove the signature lighting -1- rearward.
