Left And Right Signature Lighting Bulb -L275- / -L276-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

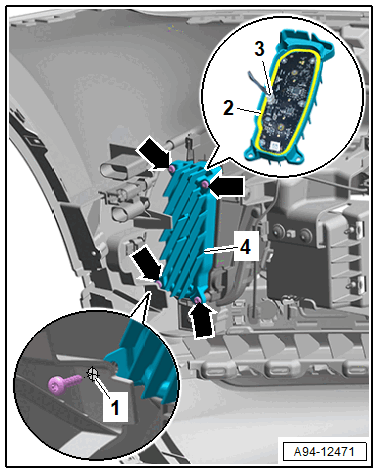

-- Remove the wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
-- Vehicles with headlamp washer system: free up the washer fluid hose.
-- Drill a hole -1- in the rib at the height of the outer bolt.
-- Remove the bolts -arrows-.
-- Remove the signature lighting bulb -4-.
-- Disconnect the connector -3-.
