Rear Lid Drive Unit -VX69-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
-- Release the catches -arrows- and remove the cover -2- from the hinge -1-.

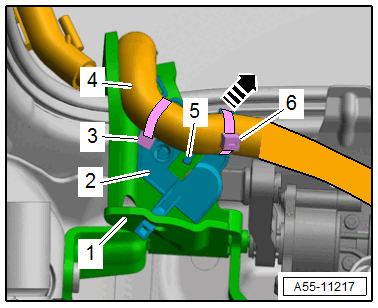

-- Cut through the cable ties -3 and 6- and free up the wiring harness -4-.
-- Release the catch -5- and remove the cover -2- from the mount -1- -arrow-.

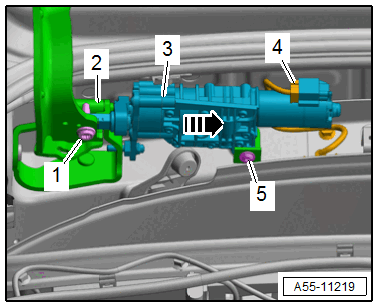

-- Remove the bolts -1 and 5-.
-- Remove the rear lid motor -3- from the mount on the hinge -2- -arrow-.
-- Disconnect the connector -4-.
