Overview - Wheel Arch Trims

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

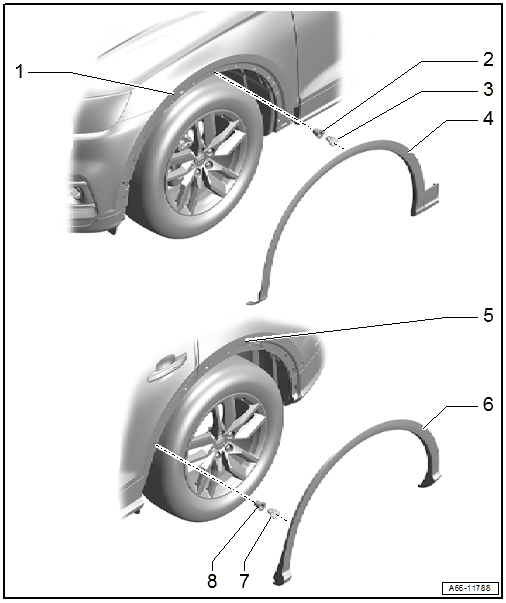

Fig 1: Exploded View Of Wheel Arch Trims

Courtesy of AUDI OF AMERICA, LLC

Fender
Grommet
- For the clip
- Replace the wheel arch trim after removal
- Equipped on some models
- Quantity: 11
Clip
- Replace the wheel arch trim after removal
- Quantity: 11
Front Wheel Arch Trim
- Replace after removing.
- Removing and Installing. Refer to WHEEL ARCH TRIM, REMOVING AND INSTALLING, FRONT .
Side Panel
Rear Wheel Arch Trim
- Replace after removing.
- Removing and Installing. Refer to WHEEL COVER, REMOVING AND INSTALLING, REAR .
Clip
- Replace the wheel arch trim after removal
- Quantity: 8
Grommet
- Replace the wheel arch trim after removal
- For the clip
- Equipped on some models
- Quantity: 8
