Overview - VALVETRAIN

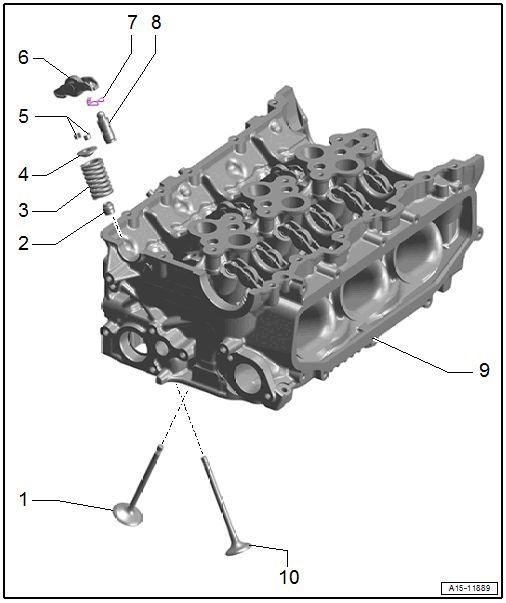

Fig 1: Exploded View Of Valvetrain

Courtesy of AUDI OF AMERICA, LLC

1. Exhaust Valve
   • Do not rework, only lapping is permitted
   • Mark the installed position for reinstallation.
   • Valve Dimensions. Refer to VALVE DIMENSIONS .
   • Valve Guides, Checking. Refer to VALVE GUIDES, CHECKING .
2. Valve Stem Seal
   • Different versions; allocation. Refer to Fig 4.
   • Replacing. Refer to VALVE STEM SEALS, REMOVING AND INSTALLING .
3. Valve Spring
   • Installation position:
     • Intake Valve. Refer to Fig 2.
     • Exhaust Valve. Refer to Fig 3.
4. Valve Spring Retainer
5. Valve Retainers
6. Roller Rocker Lever
   • Mark the installation position with paint for reinstallation
   • Check the roller bearing for ease of movement
   • Oil the running surfaces before installing
   • Clipped in with the clamp -item-  7 on the hydraulic lifter -item-  8
7. Clip
   • Not available separately.
   • Check for secure fit
8. Hydraulic Lifter
   • Clipped in the roller rocker lever -item-  6
   • Mark the installation position with paint for reinstallation
   • Oil the running surfaces before installing
9. Cylinder Head
   • Shown for cylinder bank 2 (left)
   • Valve Guides, Checking. Refer to VALVE GUIDES, CHECKING .
10. Intake Valve
    • Do not rework, only lapping is permitted
    • Mark the installed position for reinstallation.
    • Valve Dimensions. Refer to VALVE DIMENSIONS .
    • Valve Guides, Checking. Refer to VALVE GUIDES, CHECKING .

Installation Position of the Intake Valve Spring

Fig 2: Camshaft Cylinder Head Bank 1 (Right)

Courtesy of AUDI OF AMERICA, LLC

• The tight spring coils -arrow- face toward the cylinder head.

Installation Position of the Exhaust Valve Spring

Fig 3: Installation Position of the Exhaust Valve Spring

Courtesy of AUDI OF AMERICA, LLC

• The color marking -arrows- points upward.

Valve Stem Seal Allocation

Fig 4: Valve Stem Seal - Different Versions

Courtesy of AUDI OF AMERICA, LLC

A - Exhaust Side, Red

B - Intake Side, Green
