Camshaft, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi SQ5, 2021 Audi SQ5, 2020 Audi SQ5, 2019 Audi SQ5, and 2018 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the applicable camshaft housing. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .
-- Remove the :T40133/1 -arrows-.

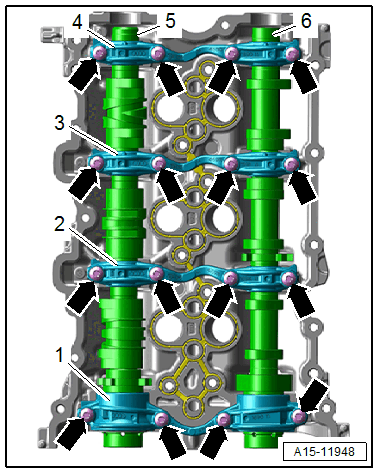

-- Remove the bolts -arrows- and remove the bearing cap -1 to 4-.
-- Remove the camshafts -5 and 6-.
