Camshaft, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Audi SQ5, 2021 Audi SQ5, 2020 Audi SQ5, 2019 Audi SQ5, and 2018 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

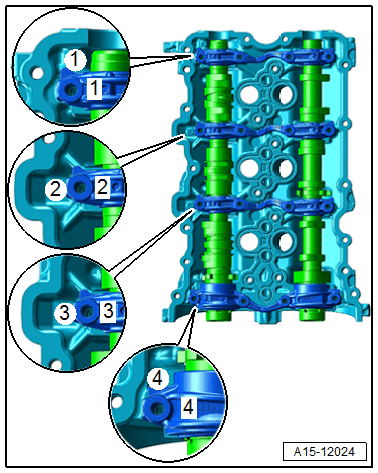

The bearing caps are marked to the camshaft housing to prevent them from being incorrectly installed.
NOTE:
If the sliding bar for the camshaft adjustment is pushed from the splines of the camshaft the camshaft must be replaced.

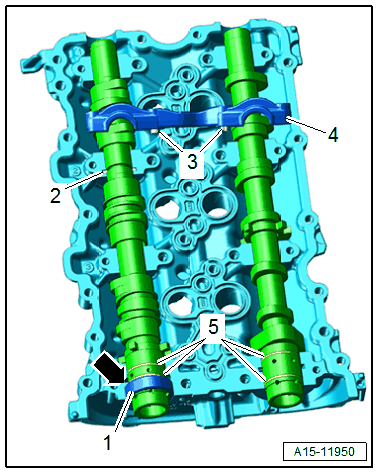

-- Bring the axial bearing -2- and camshafts on the camshaft housing into installation position.
- The compression ring ends -5- must face upward or downward, and must never face sideways.
- The friction bearing -1- must be inserted all the way on the camshaft housing -arrow-.
-- Bring all bearing caps -4- in the installation position and tighten them, at the same time pay attention to the allocation.
- Both adapter sleeves -3- must be inserted into the openings on each bearing cap.
- The adapter sleeve must engage in the hole in the camshaft housing.

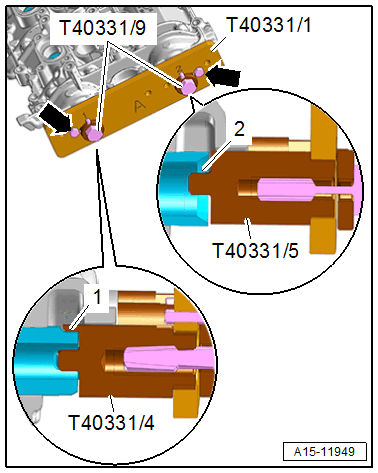

-- Align the camshafts and insert the :T40331/1 all the way.
- The lettering on the camshaft positioning tool points forward ("A" for cylinder bank 1).
-- Tighten the bolts -arrows- hand-tight.
- The :T40331/4 engages in the flattened position -1- on the intake camshaft.
- The :T40331/5 engages in the upper asymmetrical groove -2- on the exhaust camshaft.
-- Install the camshaft housing. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .
