Camshaft Adjuster Valves, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi SQ5, 2021 Audi SQ5, 2020 Audi SQ5, 2019 Audi SQ5, and 2018 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
Depending on the model, preliminary work may be required. Refer to CAM ADJUSTMENT VALVE 1 -N205-, REMOVING AND INSTALLING .
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

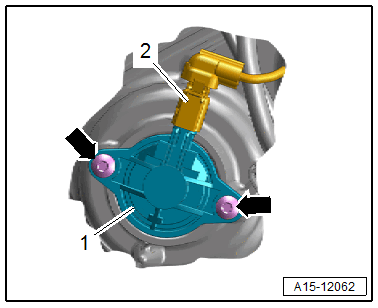

-- Disconnect the connector -2-.
-- Remove the bolts -arrows- and then remove the camshaft adjustment valve -1- :
