Cylinder Bank 2 (Left) Camshaft Housing, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi SQ5, 2021 Audi SQ5, 2020 Audi SQ5, 2019 Audi SQ5, and 2018 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove camshaft timing chain from camshafts. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .

-- Remove the crankcase ventilation module. Refer to CRANKCASE VENTILATION MODULE, REMOVING AND INSTALLING .

-- Remove the fuel injectors. Refer to FUEL INJECTORS, REMOVING AND INSTALLING .

-- Remove the noise insulation lower section.

-- Loosen and remove the camshaft housing bolts in the sequence -19 to 1-.

Fig 1: Cylinder Bank 2 (Left) Camshaft Housing - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

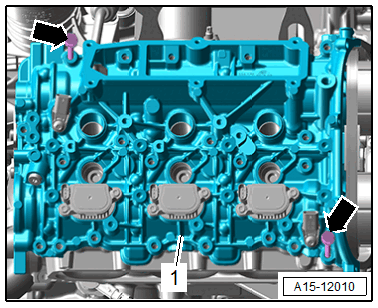

-- To loosen the camshaft housing -1- install two M6 x 30 bolts -arrows- all the way.

Courtesy of AUDI OF AMERICA, LLC

-- Install the bolts alternating from side to side ¹ /₂ turn respectively until the camshaft housing is loosened.

-- Remove the bolts and the camshaft housing.

CAUTION:

Risk of destroying the engine by small parts inadvertently entering with the camshaft housing removed.

- Cover the cylinder head with a clean cloth.
