Cylinder Bank 2 (Left) Camshaft Housing, Removing And Installing: Installing

WARNING: This page is about a different car, the 2022 Audi SQ5, 2021 Audi SQ5, 2020 Audi SQ5, 2019 Audi SQ5, and 2018 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Replace the bolts that were tightened with an additional turn after removing them.
Replace the seal after removal.
The hydraulic lifters and roller rocker lever are inserted.

When only one camshaft housing is removed the "TDC" position of the camshaft must be checked when the camshaft housing is installed.

CAUTION:

Risk of destroying the engine by adjusting the valve timing.

- The camshafts must be in TDC point.

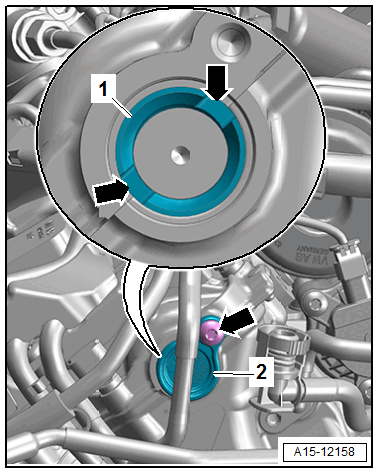

-- Remove the bolt -3- and the plug -2-.

Courtesy of AUDI OF AMERICA, LLC

The exhaust camshafts -1- have an asymmetrically arranged pair of grooves -arrows-. In the "TDC" position, the asymmetrically arranged pair of grooves must be above the conceived horizontal center line as shown. If necessary turn the crankshaft an additional turn.
The crankshaft is locked using the :T40264/3 or :T40069 at "TDC" point.
The :T40331/1 is tightened on the left camshaft housing.

CAUTION:

Risk of contaminating the lubricating system.

- Cover open engine components.

Fig 1: Cleaning Sealing Surfaces

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of injuring the eyes from sealant residue.

- Wear protective eyewear.

-- Remove any sealant residue on the camshaft housing -1- and cylinder head using a rotating plastic brush.

-- Clean any oil or grease off the sealing surfaces.

-- Lubricate the running surfaces of both camshafts.

Be sure to check the expiration date of the sealant.

Fig 2: Cut Tube Nozzle At Front Marking
Courtesy of AUDI OF AMERICA, LLC

-- Cut the tube nozzle at the front marking (nozzle diameter: about 2.5 mm).

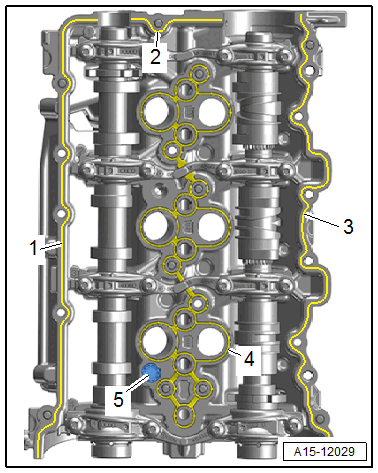

-- Check if the check valve -5- is inserted.

Courtesy of AUDI OF AMERICA, LLC

-- Insert the seal -4-.

CAUTION:

There is a risk that the lubrication system could be blocked by excess sealant.

- Do not apply sealant bead thicker than indicated.

-- Apply sealant beads -1, 2 and 3- on the clean sealing surfaces of the camshaft housings.

Sealant bead thickness 3.0 mm
Install the camshaft housing within five minutes of applying the sealant.

Procedure, If the Engine Is Removed Due to Preliminary Work.

Courtesy of AUDI OF AMERICA, LLC

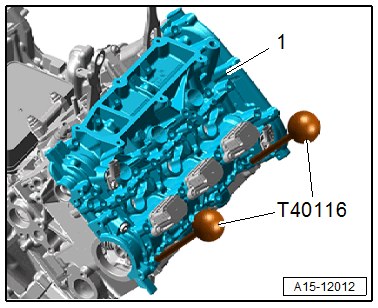

-- Position the camshaft housing -1- on the cylinder head but do not press on the sealant beads yet.

The sealant must not get into the threaded holes.

-- Insert the :T40116 into the camshaft housing and cylinder head.

Procedure, If the Engine Is NOT Removed Due to Preliminary Work.

Courtesy of AUDI OF AMERICA, LLC

Depending on the model, preliminary work may be required. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .

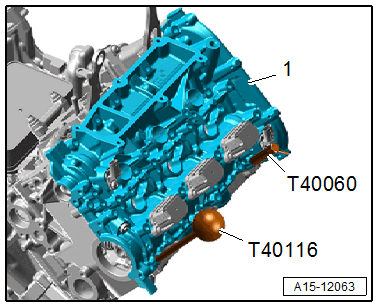

-- Position the camshaft housing -1- on the cylinder head but do not press on the sealant beads yet.

The sealant must not get into the threaded holes.

-- Insert the :T40116 into the front camshaft housing and cylinder head.

-- Insert the :T40060 into the rear camshaft housing and cylinder head.

Continuation:

Courtesy of AUDI OF AMERICA, LLC

-- Next install all bolts for the camshaft housing by hand and then tighten.

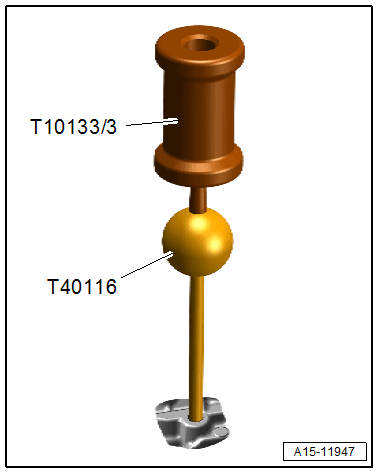

-- Remove the :T40116 with the :T10133/3 .

-- If necessary remove the :T40060 using pliers.

Further installation is performed in reverse order of removal, while noting the following:

-- Insert the lower section of the noise insulation.

-- Install the fuel injectors. Refer to FUEL INJECTORS, REMOVING AND INSTALLING .

-- Position the camshaft timing chain (adjust the valve timing). Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .

-- Install the crankcase ventilation module. Refer to CRANKCASE VENTILATION MODULE, REMOVING AND INSTALLING .

Additional procedures. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .
