Camshaft Timing Chain, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi SQ5, 2021 Audi SQ5, 2020 Audi SQ5, 2019 Audi SQ5, and 2018 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .

Cylinder Bank 2 (left) Camshaft Timing Chain:

CAUTION:

Risk of destroying a used camshaft timing chain by reversing the running direction.

- Before removing, make a arrow marking of the running direction and allocation with paint.

- Pay attention to the running direction when reinstalling.

-- Remove the camshaft timing chain from the cylinder bank 2 (left) camshafts. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .

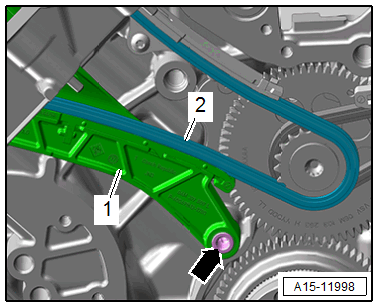

-- Remove the guide pin -arrow- and remove the tensioning rail -1- downward.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the camshaft timing chain -2- upward.

Cylinder Bank 1 (Right) Camshaft Timing Chain:

Courtesy of AUDI OF AMERICA, LLC

Removing the cylinder bank 2 (left) camshaft timing chain.

-- Remove the camshaft timing chain from the cylinder bank 1 (right) camshafts. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .

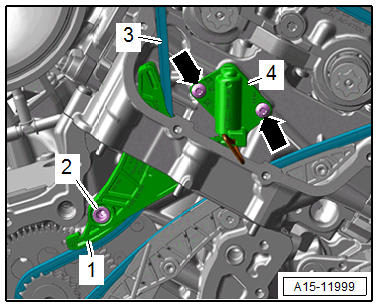

-- Remove the bolts -arrows- and chain tensioner -4-.

-- Remove the mounting pin -2- and the camshaft timing chain -3- with the tensioning rail -1-.

-- If changes on the timing chain make place or components should be replaced, perform the corresponding adaptations in the Guided Functions "0001 - Engine electronics, functions". Use the Vehicle Diagnostic Tester.
