Turbocharger Vacuum Diaphragm, Replacing, 2.9L Engine, Cylinder Bank 2 (Left): Installing

Courtesy of AUDI OF AMERICA, LLC

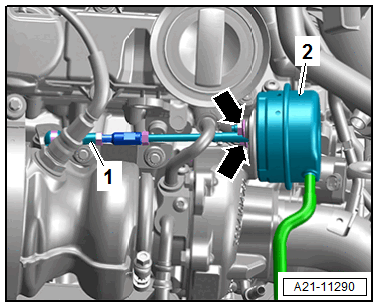

-- Install the vacuum diaphragm -2- with adjustable control rod on the turbocharger.

-- To do so, tighten the nuts -arrows- and press on the ball socket -1- on the operating lever ball pin.

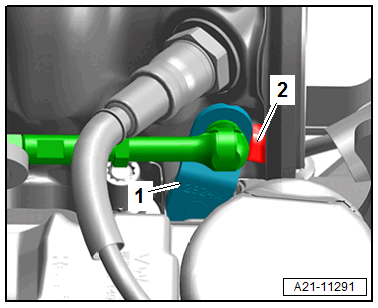

-- Adjust the control rod on the threaded piece so that the operating lever -1- contacts the stop -2-.

Courtesy of AUDI OF AMERICA, LLC

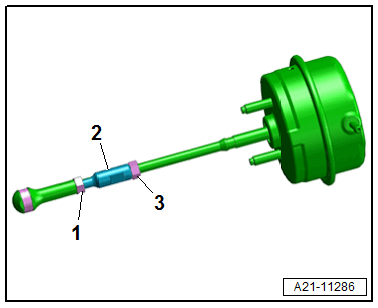

-- Turn the threaded piece -2- out of this position 1.5 turns counter-clockwise.

Courtesy of AUDI OF AMERICA, LLC

• The control rod is longer from this.

-- Tighten the lock nuts -1 and 3-.

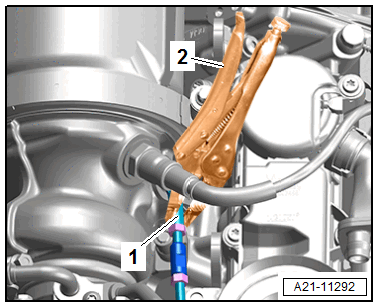

-- Tighten the small locking pliers -2- on the shaft of the ball socket -1-.The locking pliers function as a stop for the dial gauge.

Courtesy of AUDI OF AMERICA, LLC

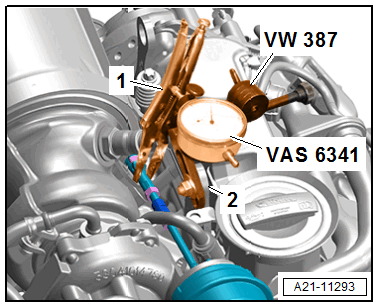

-- Tighten the :VW387  on the engine lifting eye -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Align the :VAS6341/1  in the :VW387  so that the measuring probes are parallel to the vacuum diaphragm control rod at the same time the measuring probe contacts the locking pliers -1-.

-- Set the gauge with approximately 5 mm pretension to "0".

-- Connect the test equipment together as shown and on the :VAG1397B  as well as the turbocharger vacuum diaphragm.

Courtesy of AUDI OF AMERICA, LLC

-- Close the lever -1- on the :VAS6342  .

-- Set the slider ring -1- on the :VAS6213  in position -A- for "vacuum".

Fig 1: Adjusting Hand Vacuum Pump Slide Ring

Courtesy of AUDI OF AMERICA, LLC

-- Switch on the :VAG1397B  .

-- Generate a vacuum of -300 mbar with the :VAS6213  .

-- Slowly open the test valve and reduce the vacuum:

• Latest from -200 mbar the control rod begins to move.
• At 270 to 170 mbar, a stroke of 7 to 9 mm must be read on the dial gauge.
• At 170 to 100 mbar, a stroke of 2 to 4 mm must be read on the dial gauge.

-- If necessary, loosen the lock nuts -1 and 3- and adjust the threaded piece -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Repeat the test.

-- Tighten the lock nuts.

• The ball socket must be parallel to the operating lever.

  Courtesy of AUDI OF AMERICA, LLC

• Check the vacuum hoses for damage before the assembly and replace if necessary.

-- Remove the measurement setup and connect the vacuum hose on the vacuum diaphragm.

• Check the O-rings for damage. Refer to Figure.

-- Install the heat shield and engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
